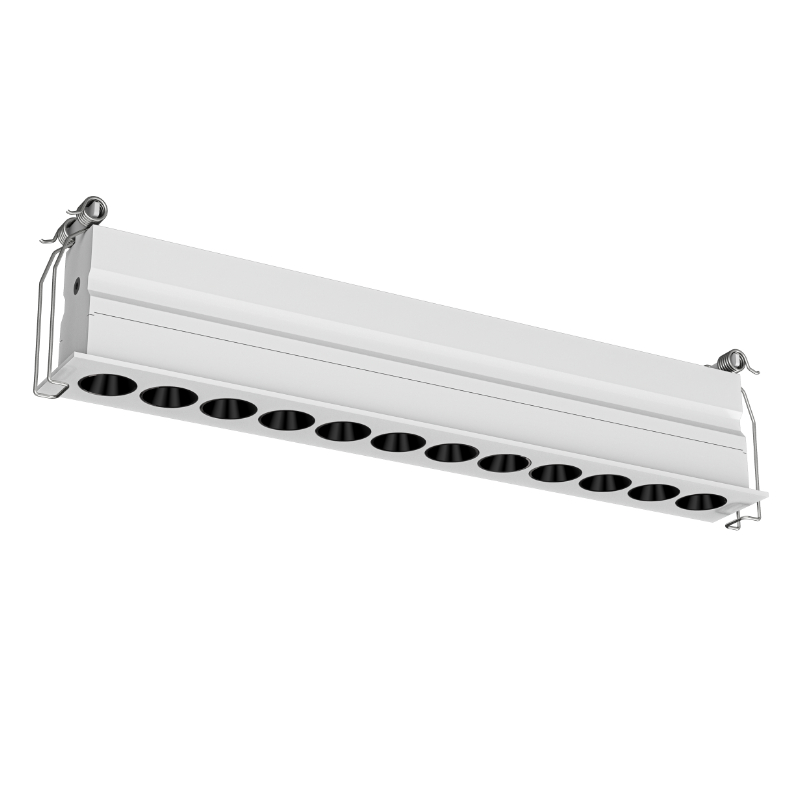

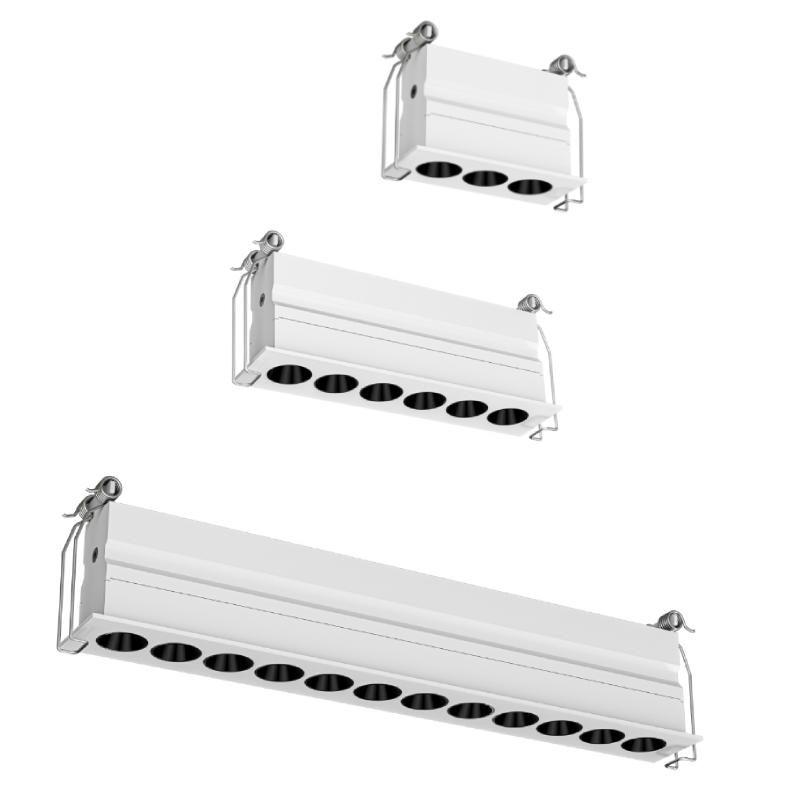

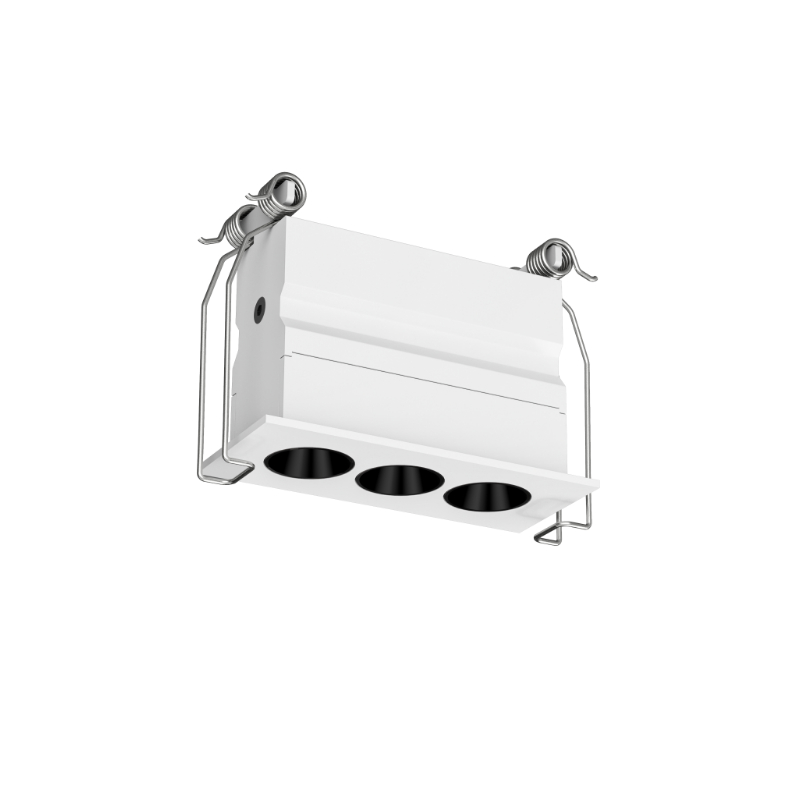

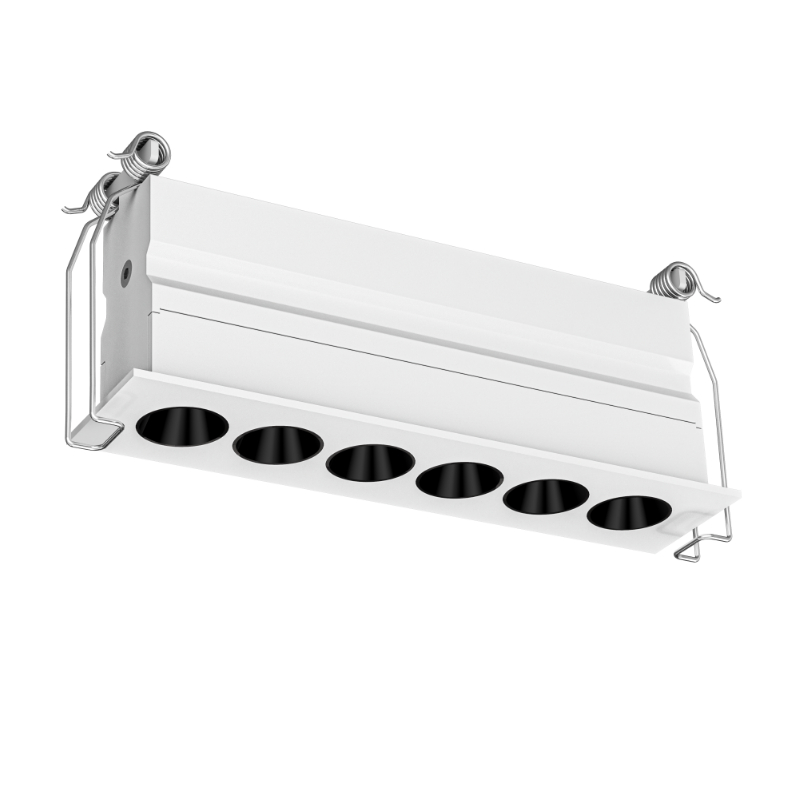

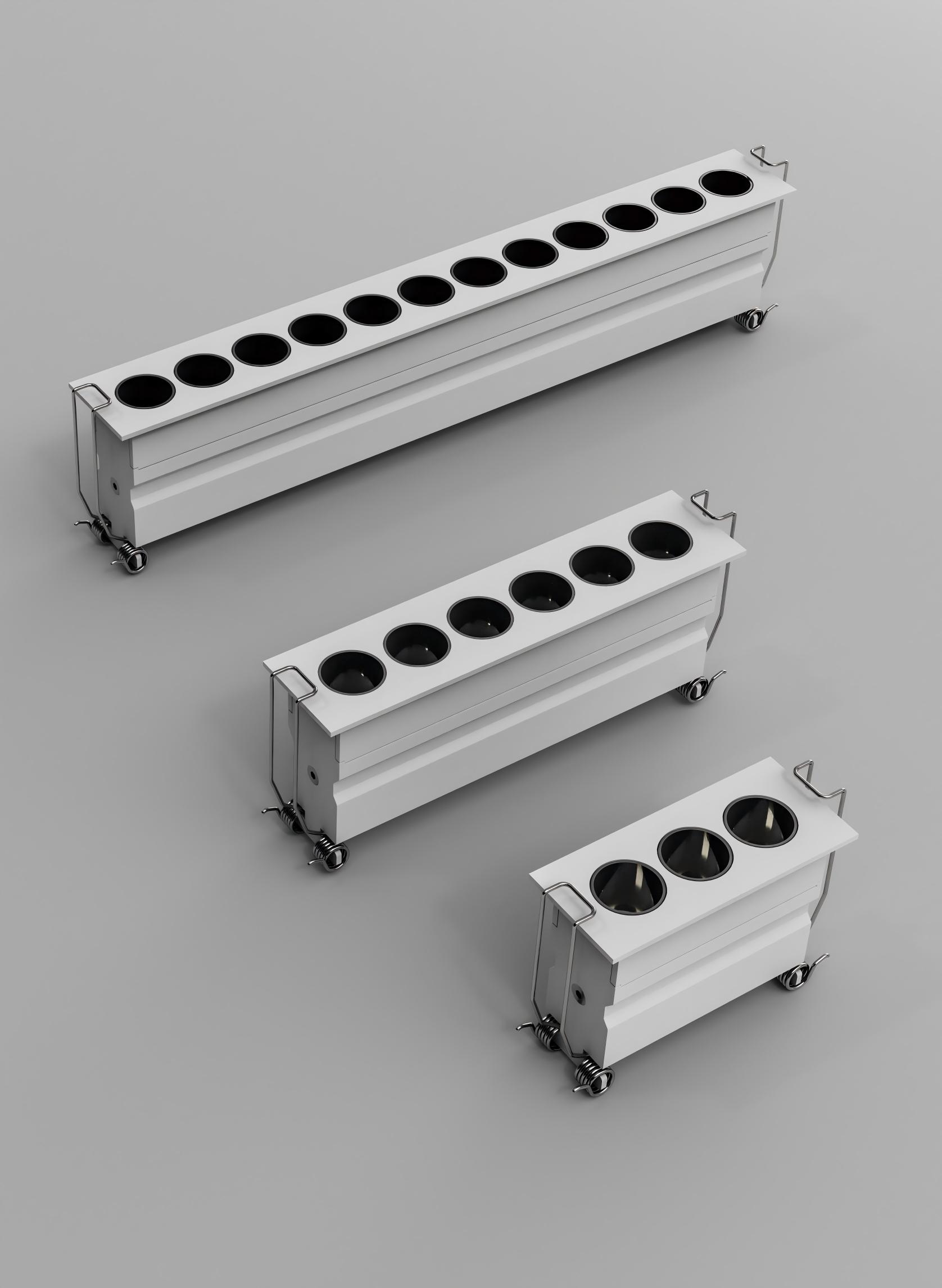

Recessed Multi-head Led Linear Downlight Laser Blade Light 6W 12W 24W

Specification

Downloads

Specification-Led Laser Blade Light-Model-SD36503

Specification-Led Laser Blade Light-Model-SD36506

Specification-Led Laser Blade Light-Model-SD36512

Features

Led Chip

Using International Famous Brand Led Chip SMD Luminus /Bridgelux ,With High Brightness, Long Life, Small Light Decay, And Good Heat Dissipation Effect.

Widely CCT Range 2700K/3000K/3500K/4000K/5000K/5500K For Customers To Choose From .

And High Color Rendering Index Ra90 /Ra97 To Meet The Lighting Requirements Of Different Scenes And Needs.

Optical Flexibility:

To Meet Different Lighting Requirements,This Model Led Downlights Offer Optical Flexibility With Multiple Beam Angle Options. You Can Select From Beam Angles Of  24D, 40D ,50Degrees, Providing Versatility In Lighting Distribution.

Led Driver

Constant Current Driver Output With Flicker Free, Provide High Work Efficiency And Stable Performance.(PF0.5/ PF0.85/PF0.95 Optional.)

Dimmable And Non-Dimmable Led Driver Solution Available.

Triac Dimming, 0/1-10V And DALI Dimming For Different Demands Of Project Lighting Solution.

Material

6063 Aluminum Housing With Excellent Thermal Dissipation.White Or Black Finish.

Anti Glare Design

Independent Deep Anti-glare Laser Cavity Optics,No Dark Spot In Center.,The Led Chip Deep Hide In The Lamp Body .The Aluminum Reflector Height Is High,And Matt Black l Color Reflector Finish,No Dazzing Lighting.

Easy Installation And Maintenance

This Series Led Linear Light Versions With Perimeter Flap (Frame),Embedded Trimless Type Available For Optional.

The Recessed Linear Laser Blade Light Have a Simple And Easy-To-Use Installation Method,

Recessed Linear Light With Trim, Install The Linear Light With Clips On The Ceiling.

Trimless Laser Blade Light With Pre-Embedded Parts, Fixed The Pre-Embedded Parts On The Ceiling Firstly,Then Recessed The Led Downlight Mould Into The Ceiling.

The Frameless Type, All With a Easy Pull-Out Led Mould Design,Which Are Convenient For Maintenance In The Future.

Application Scenarios

Suitable For Commercial And Residential Lighting Like Hotels, Restaurants, Offices, Villas,Clubs, Shops And Homes.Etc.
